美彩国际 Boyue smart manufacturing "RFID smart key management cabinet" is a professional management key cabinet specially provided for a large number of key management users by combining RFID radio frequency induction technology and computer information management system. Thus, an intelligent management system which can realize the functions of remote application, approval, record query and online monitoring is developed.

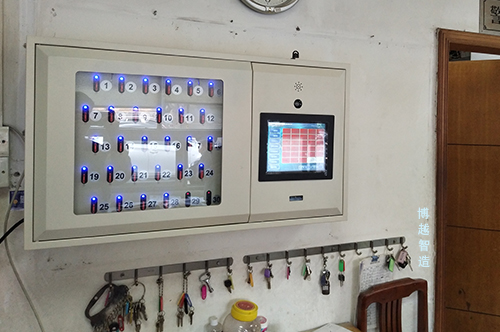

美彩国际 Wall mounted smart key cabinet

美彩国际 (RFID) the 30 position wall mounted smart key cabinet mainly uses code scanning (customized key cabinet can use face recognition, fingerprint, code scanning, password, card swiping, etc.) authentication to access the key. Only after passing the verification can the key cabinet be opened and the key be returned.

Key cabinet product parameters:

美彩国际 master control Industrial computer and touch screen integrated machine, 7-inch touch screen and 10 Inch Touch screen are optional

Number of keys 30 bits (customizable)

Host configuration 4418 A9 1.5GHz 2G+32G

美彩国际 system Linux or windows

美彩国际 Power Supply 12V

美彩国际 Authentication mode Fingerprint and card swiping (customized options: fingerprint, face, password, card swiping and QR code)

美彩国际 Nixie tube Optional

美彩国际 Power consumption Input voltage 12V, power consumption 18W

Cabinet material 1.0 high quality cold rolled steel sheet

美彩国际 Key identification form RFID tag electronic identity reading

美彩国际 Photographing function Fisheye camera (optional)

Overall dimension Height 500mm * width 800mm * depth 330mm (support customization)

Secondary development Support secondary development, customization or OEM

美彩国际 Software function introduction:

1. The smart key cabinet can strictly manage the authorized keys.

美彩国际 2. RFID key real-time on-site detection, remote query of key use, automatic record of key use log, abnormal alarm record, identification of true and false keys, two person verification and cabinet opening, binding key photography, wechat applet code scanning, door opening and key return.

美彩国际 3. Be able to manage the relevant data of all managers, including the name of managers, card reading information, key number, etc.

4. The smart key cabinet adopts safety electric lock: only authorized users can open it.

美彩国际 5. Record all operations of the system, with retrieval and printing functions; Corresponding reports can be generated according to RFID key number, user or time.

6. The smart key cabinet can be equipped with backup battery, and the lithium battery can still maintain memory when the system is powered off for a long time.

美彩国际 7. The smart key cabinet can be equipped with nixie tube with low power consumption. The key position can be queried quickly.

8. Each key position is equipped with LED indicator. When the key cabinet is removed and returned, the LED flashes. When the key is returned wrongly, the LED has a warning state.

美彩国际 9. The smart key chain can provide a variety of colors. The stainless steel ring of the key chain seals the key once. The RFID electronic identity tag is embedded in the smart key chain, which can identify the electronic identity information of the key without contact.

10. The mobile phone approval process can be used to control the retrieval and return of keys.

美彩国际 Application scenario:

Public security system, troops, enterprises and institutions, community property, automobile 4S stores, hotels, hospitals, libraries, airports, etc.

Key cabinet color optional:

Wall mounted smart key cabinet with optional color
